Resistance
Up to 100 kg
0.5 kg step adjustment

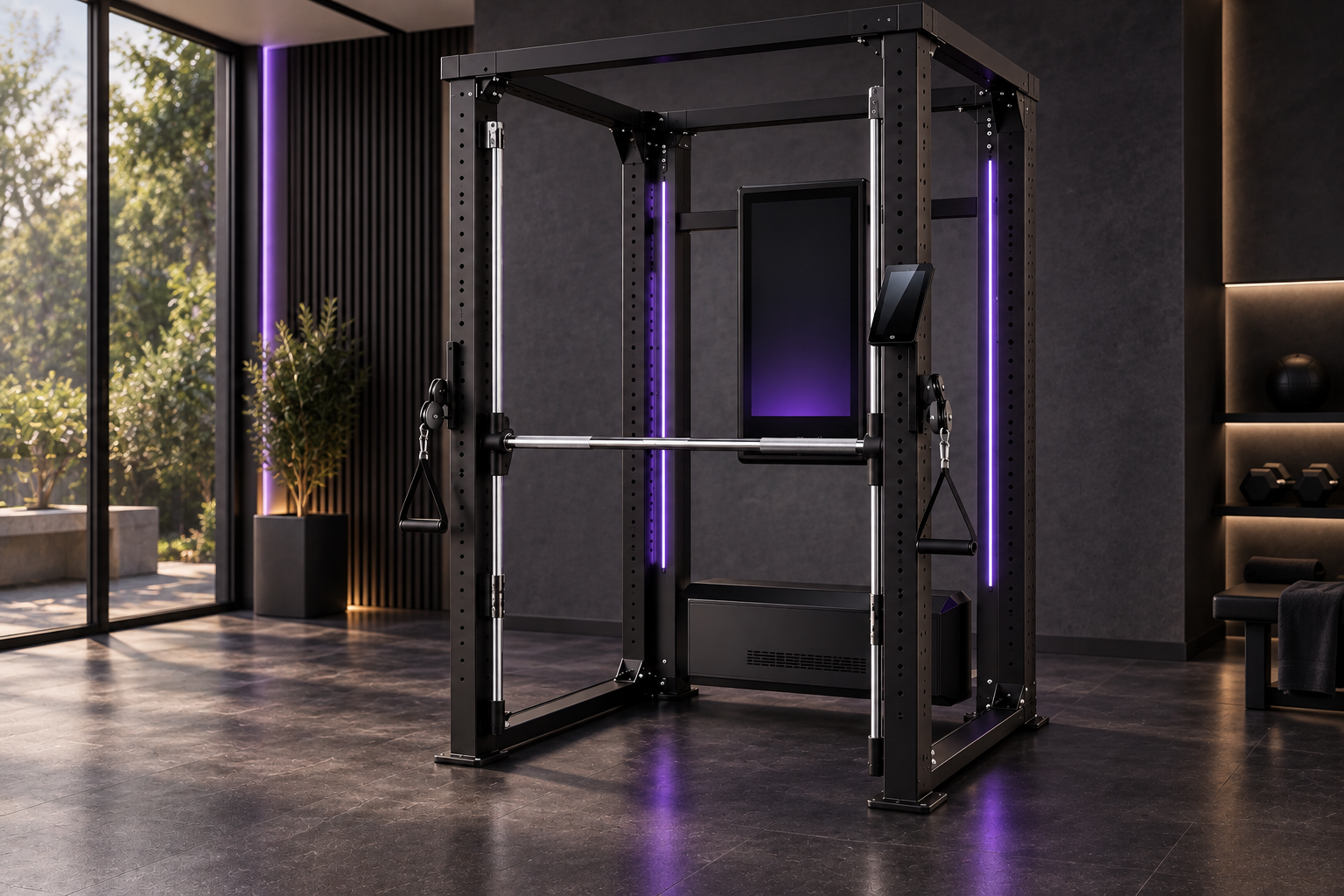

AFitBot Smith / Smart Smith Machine
Versatile Strength.Designed for Home.
Smith and cable training come together in an integrated system for the home. Motor-powered resistance and voice control streamline preparation, keeping your attention on the movement. AFitBot Vision comes preinstalled, bringing classes and AI guidance to the built-in screen.
Enquire About AFitBot Smith
Get Highlights
All-in-One
All-in-One Smart Home Gym
Smith bar + cable dual mode
Library
600+ Movements
Guided courses for every goal
Space
About 2 m²
Fits a home corner
Voice
Voice Control
Adjust hands-free
Safety
Built-In Safety
E-stop, drive enable, PE earth
Accessories
Accessories
Handles, bars and bench included

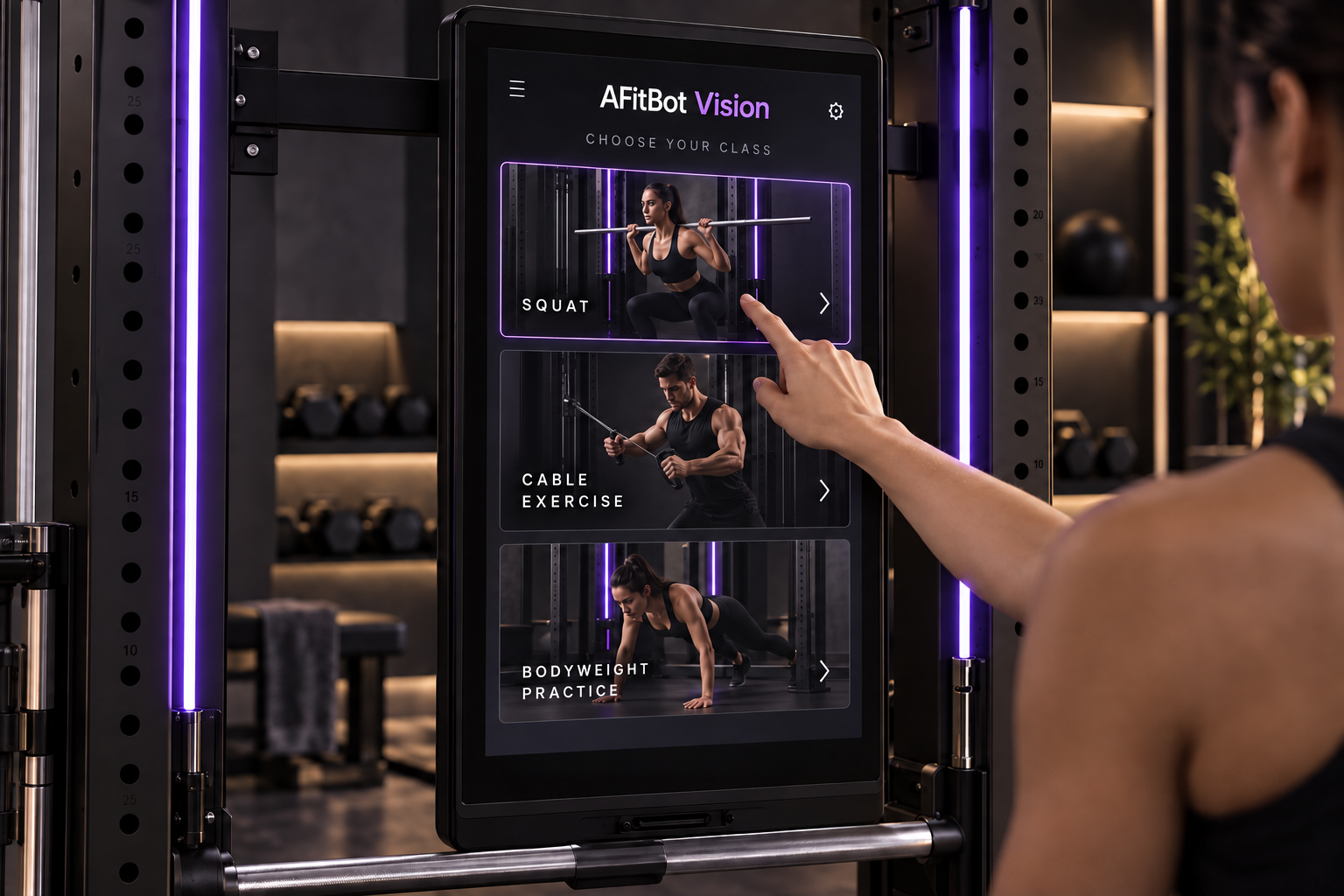

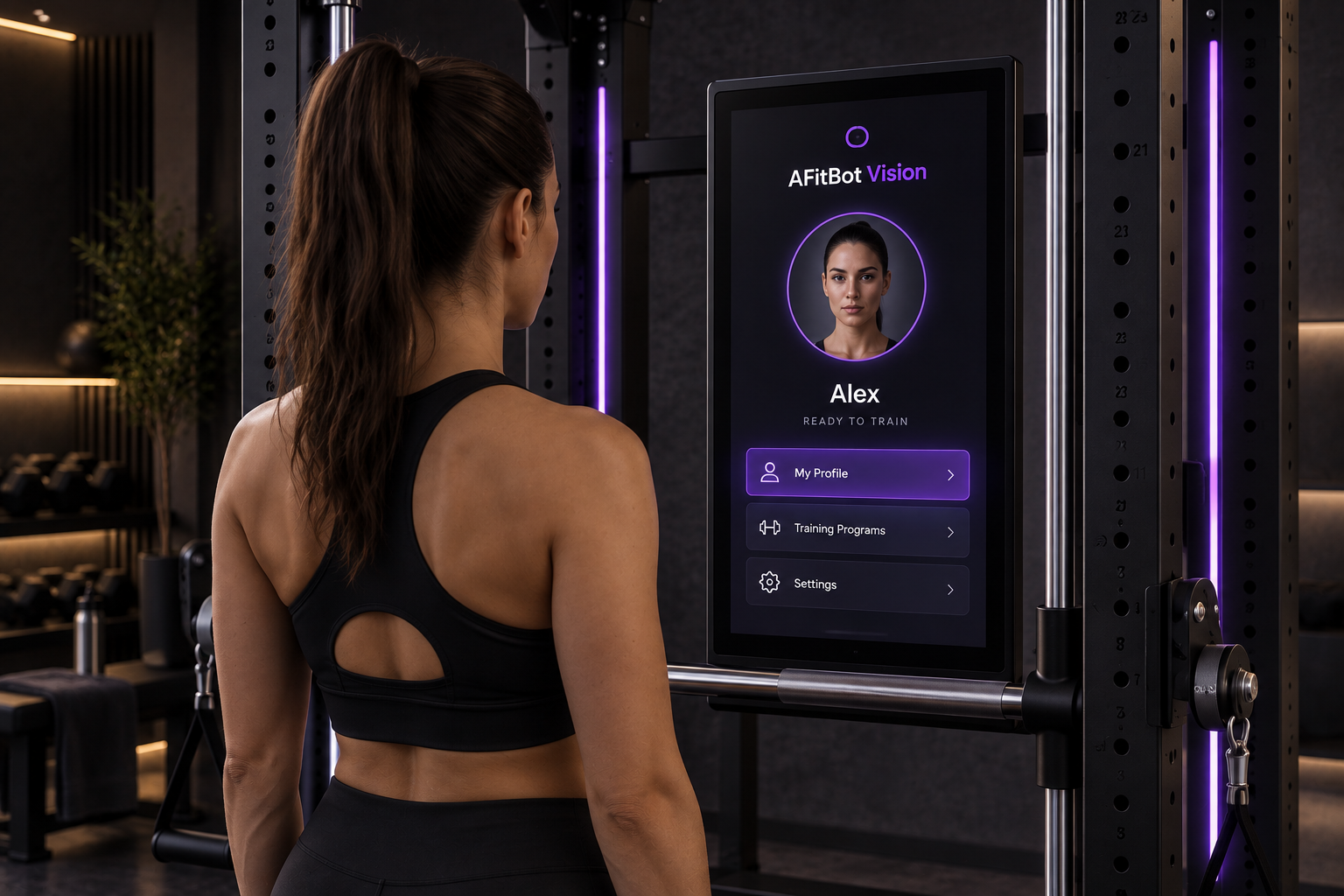

Strength, Guided by Vision.From Your Profile to Your Report.
AFitBot Vision brings profiles, classes, AI movement feedback and training reports to the Smith screen. A connected training experience, from choosing a class to reflecting on your session.
Smart Control. Seamless Training.
Adjust, stop, and switch without breaking your rhythm.
Voice Control
Adjust by Voice
Say the weight or mode you want for the next set and keep your hands on the bar.

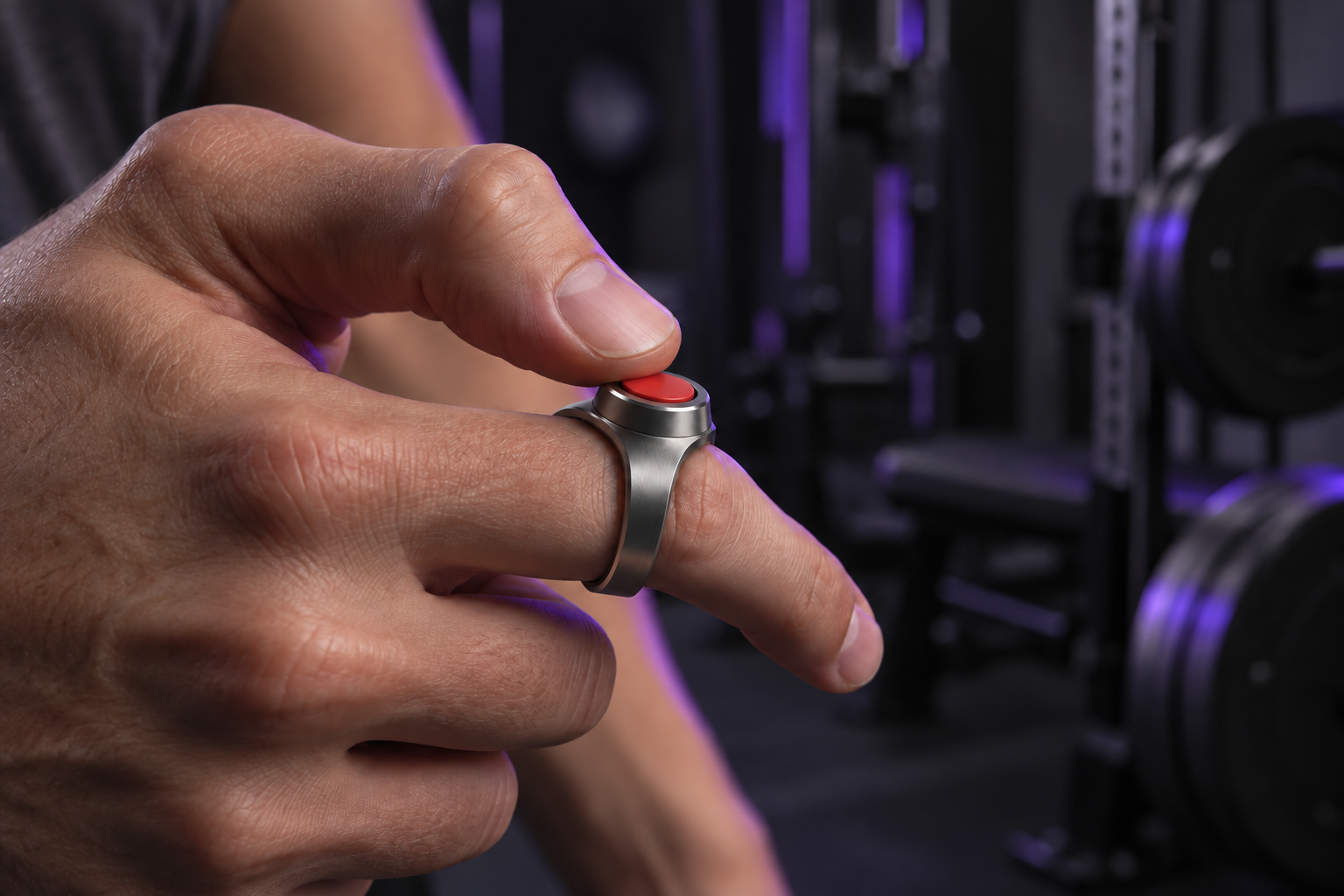

Emergency Stop
Finger-Worn Stop
A compact emergency-stop button worn on your finger stops the motor instantly.
Touchscreen Control
Control Within Reach
Switch modes and fine-tune resistance right from the big screen or control panel.
Resistance Modes, Reengineered for Progress
Choose the resistance mode that fits your goals, your movements, and your training—then make every rep count.
Standard Mode
A resistance that matches your chosen load for consistent effort throughout the set.
Concentric Mode
Emphasises the lifting phase for explosive strength and clean acceleration.
Eccentric Mode
Adds resistance during the lowering phase to build control and muscle tension.
Water Mode
A fluid, adaptive curve that feels like training against water resistance.
Spring Mode
An elastic curve that challenges stability and range throughout the movement.

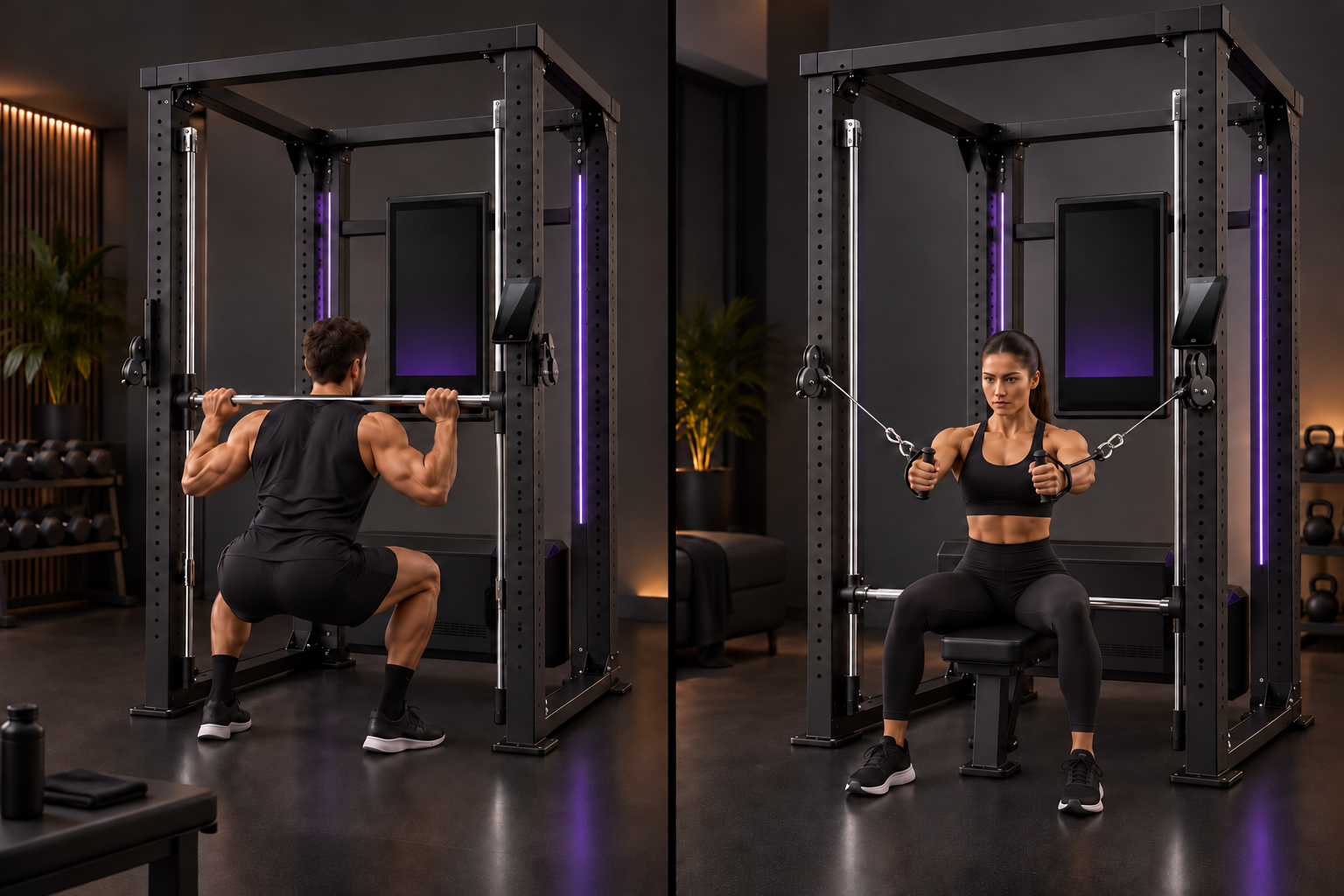

Full-Body Training.One Integrated System.
From Smith squats to seated cable flyes, move between training methods and target different muscle groups within a single, versatile system.

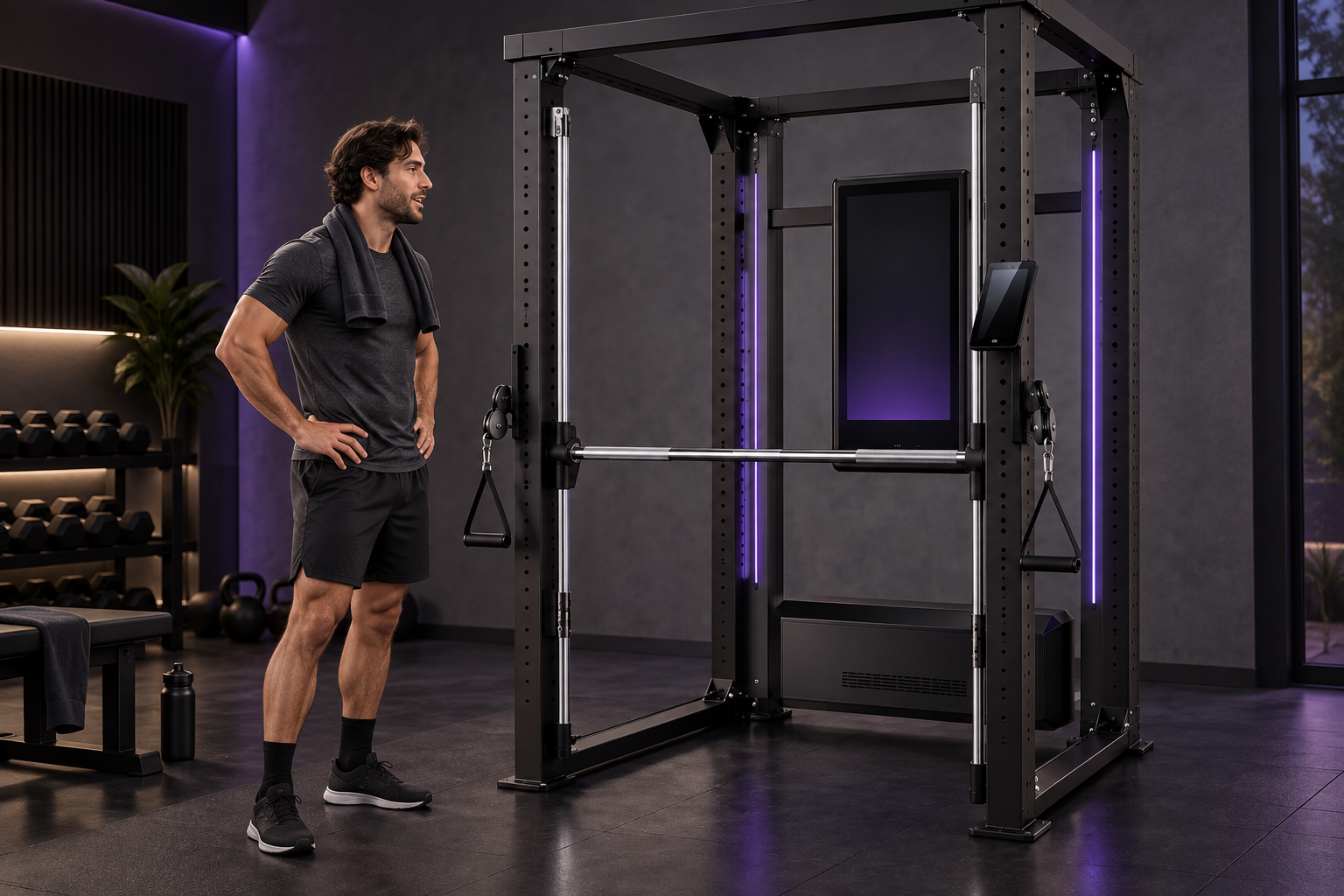

Adjust with Ease.Stay Focused on Training.
Use the compact control screen or voice commands to adjust resistance. Smoothly adjustable cable carriages on the front uprights help you position the bilateral cables for different exercises.
Set your resistance with a spoken command between sets, keeping your attention on technique and the flow of your workout.

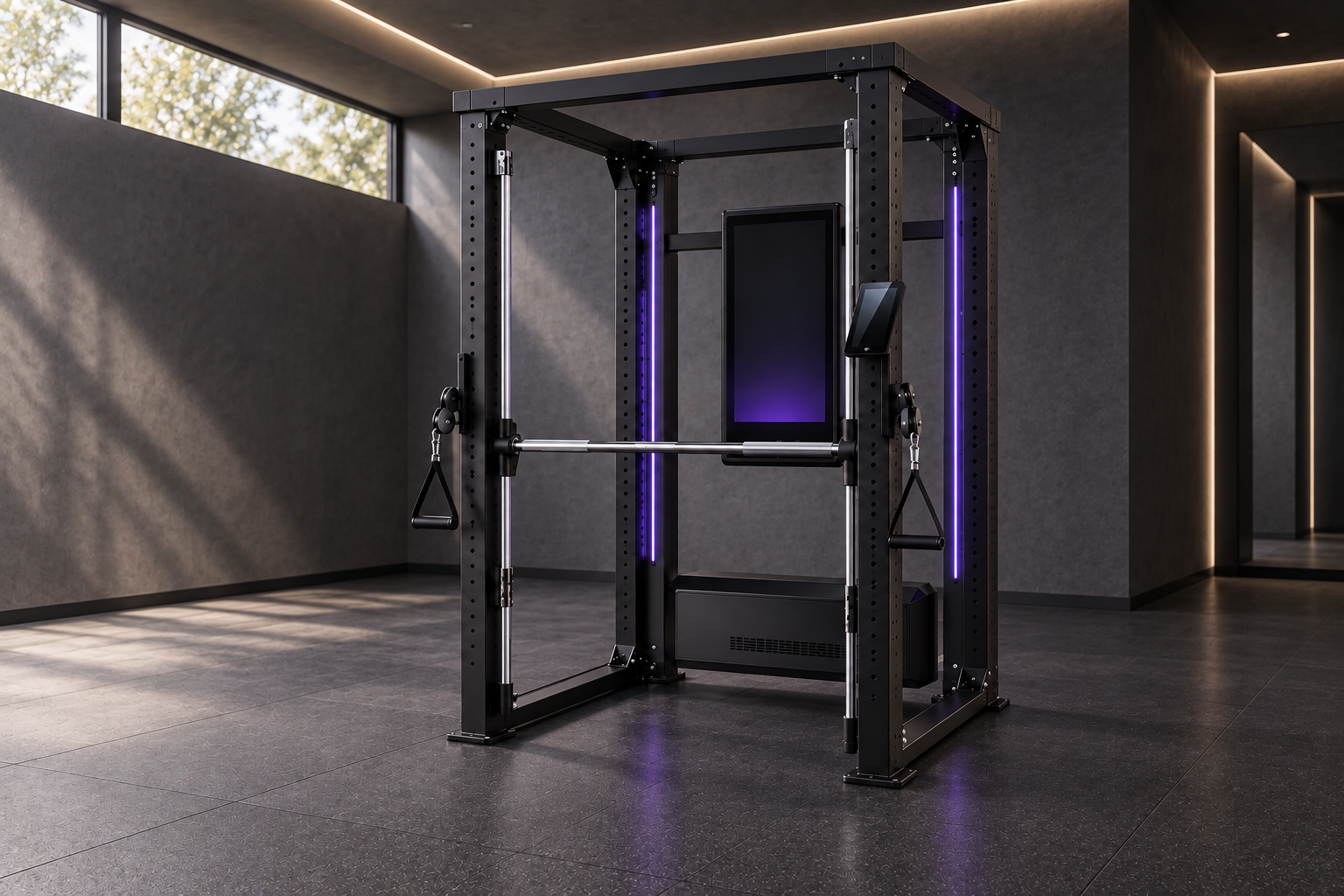

Compact by Design.More Room at Home.
With no outward bar extensions for conventional weight plates, Smith reduces lateral space requirements. The equipment measures approximately 1.6 × 1.3 m at its base—around 2.08 m², below 4 m². Allow additional clearance for exercise and access.

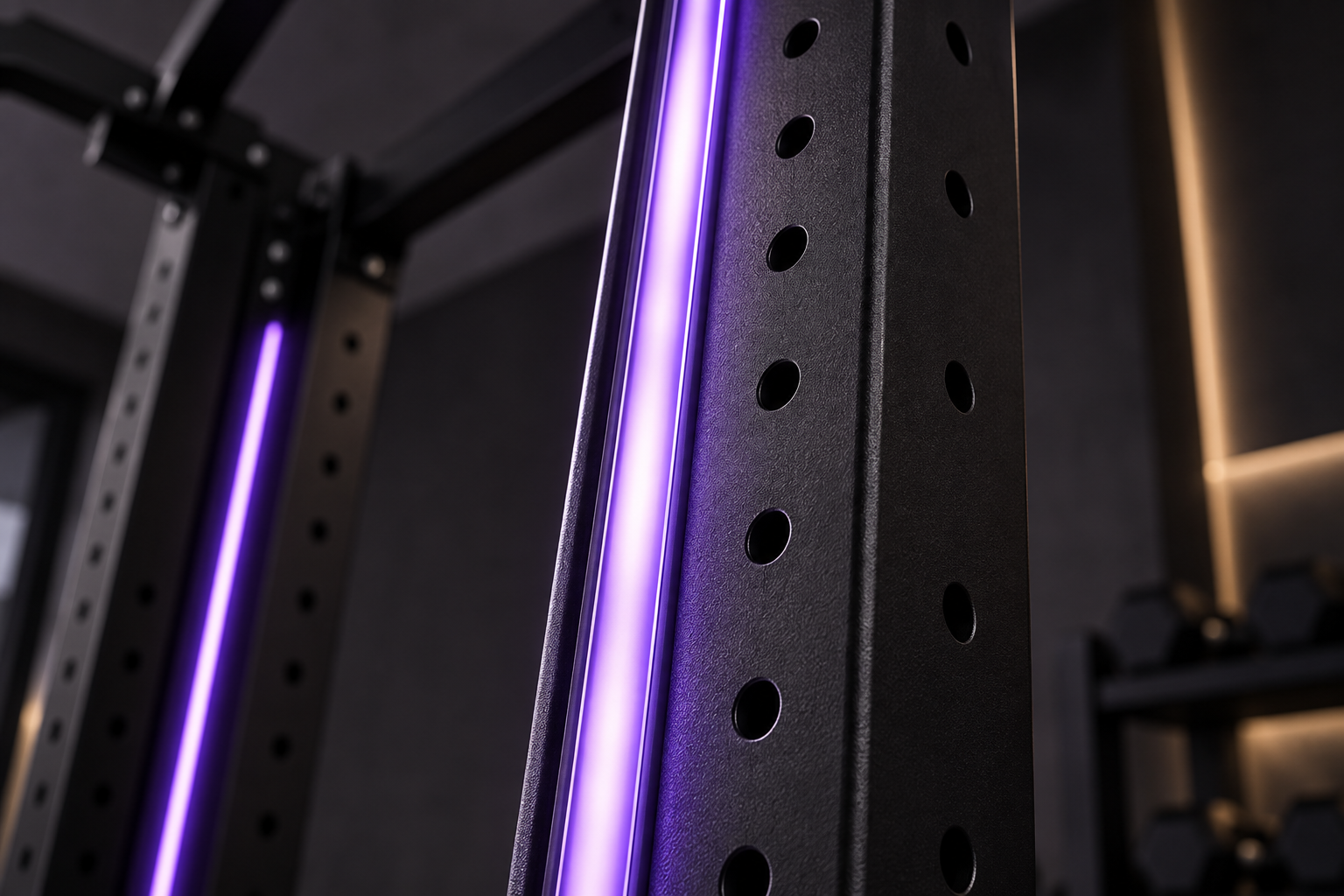

Personalised Illumination.In Rhythm with Your Effort.
Select a colour palette and pulsing light pattern to shape your training atmosphere. During exercise, quicker pulses and a distinct response to each pull connect the lighting to your movement.
Product Details
Specifications and service details below retain their stated development and regional qualifications.
Hardware Specification
Engineering targets for pre-production units. Mass-production values are confirmed at EVT exit.
| Parameter | Specification |
|---|---|
| Overall size (W×D×H) | Approx. 1.6 × 1.3 × 2.2 m (W × D × H) |
| Footprint | Approx. 2.08 m² (1.6 × 1.3 m); equipment only |
| Drive | Dual servo motors, one per side |
| Max output | 50 kg per side (fixed pulley, direct) |
| Resistance step | 0.5 kg |
| Resistance modes | Standard / Concentric / Eccentric / Water / Spring |
| Noise | < 55 dB |
| Main display | 27" IPS touchscreen, 1920×1080, ≥400 cd/m², PCAP ≥10-point touch |
| Compute | RK3576 (or equivalent), 4 GB RAM + 32 GB storage |
| Camera | Front built-in 5 MP, 160° field of view (120° alternative) |
| Audio | 2–4 microphone array with ANC + AEC; stereo 8–10 W speakers |
| Connectivity | Wi-Fi 6 dual-band + Bluetooth 5.0, OTA firmware updates |
| AI vision recognition | 52 movements across barbell, cable and bodyweight patterns, with more added by OTA |
| Movement library | 600+ guided movements, demos and course content |
| Safety chain | E-stop + drive enable + PE earth, independent of AI layer |
| Standard accessory | Adjustable-angle training bench |
| Optional accessories | V-handle, wide-grip handle, low-row bar, double-ended rope, ankle cuff and strap handle |
| Finish | Graphite black fine-sand matte frame, chrome bar, blue-violet rear LED |
Mass-production release is governed by the frozen PRD/SRS, the verification report and the certification package. Library size grows continuously with content releases.
How AFitBot Smith Compares
| AFitBot Smith | Wall-mounted digital gym | Traditional Smith rack | |
|---|---|---|---|
| Resistance | Digital motor | Digital motor | Weight plates |
| Max per side | 50 kg | ≈45 kg | Unlimited |
| Content library | 600+ movements | ≈100 movements | None |
| AI movement feedback | Yes, mid-set | Counting only | None |
| Voice control | Offline + online | Online only | None |
| Barbell + cable | Dual mode | Cable only | Barbell only |
| Installation | Floor-standing, plug in and train | Wall drilling required | Floor-standing |
| Footprint | 1.2 m² | Wall-mounted | 2–6 m² |
Competitor figures are based on publicly available specifications as of 2026 and are provided for reference only.
